Hmax 160,00 m
Qmax 740 m³/h
Design

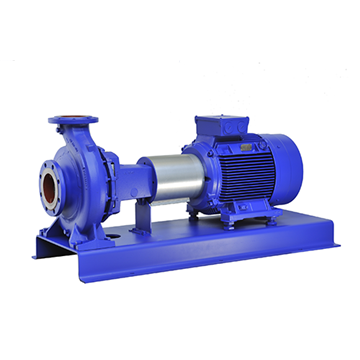

Horizontal, long-coupled, single-stage volute casing pump with ratings and main dimensions to EN 733 in back pull-out design, with replaceable shaft sleeves / shaft protecting sleeves and casing wear rings. Design to ATEX.
Applications
Spray irrigation, irrigation, drainage, district heating, water supply systems, heating and air-conditioning systems, condensate transport, swimming pools, fire-fighting systems, handling of hot water, cooling water, fire-fighting water, oil, brine, drinking water, brackish water, service water, etc.
Overview of technical data
| Type of bearing |
Ball bearings |
| Casing partition |
Radially split |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| Explosion protection |
IP 55 |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
1. 4408 / A743 GR CF8 M;CC480K-GS / B30 C90700;JL1040 / A 48 CL 35B |
| Type of installation |
Long- coupled |
| Type of coupling |
Direct |
| Type of lubrication |
Grease / Oil lubrication |
| Max. permissible fluid temperature |
140 °C |
| Guaranteed to be silicon-free |
Yes |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN 16 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4571;C45+N |
| Standard |
EN; EN / ANSI |
| Suction characteristics |
Non- priming |
| Suitable for drinking water |
Yes |
| Type of casing |
Volute casing |
| Type of impeller |
Closed / Radial |
| Type of connection |
Flange |
| UNSPSC classification |
4015150300 |
| Casing material (EN standard) |
1. 4408 / A743 GR CF8 M;CC480K-GS / B30 C90700;JL1040 / A48CL35B;JS1030 / A536 GR 60-40-18 |
| eClass assignment |
36410000; 36410100;36410101 |
| Maximum head |
160, 00 m |
| Minimum head |
2, 00 m |
| Installation position |
Horizontal |
| Shaft seal type |
Mechanical seal; Gland packing |
| Main applications |
Industry and process engineering; Water;Energy;Building services |
| Casing material |
Cast iron; Stainless steel;Nodular cast iron;Bronze |
| Maximum discharge-side pressure |
16 bar |
| Type of installation |
Stationary |
| Maximum flow rate |
740 m³/h |
| Minimum flow rate |
1, 50 m³/h |
| Maximum speed of rotation |
3. 500 1/min |
