Hmax 106,00 m
Qmax 260 m³/h
Design

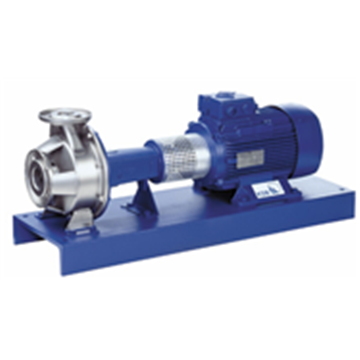

Horizontal, single-stage annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings. Design to ATEX.
Applications
Water supply, spray irrigation, irrigation and drainage systems, heating and air-conditioning systems, handling of drinking water, service water, hot water, cooling water, swimming pool water, fire-fighting water, condensate, oil and cleaning agents.
Overview of technical data
| Type of bearing |
Ball bearings |
| Casing partition |
Radially split |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| Explosion protection |
IP 55 |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
1. 4571 |
| Type of installation |
Long- coupled |
| Type of coupling |
Direct |
| Type of lubrication |
Grease lubrication |
| Max. permissible fluid temperature |
110 °C |
| Guaranteed to be silicon-free |
Yes |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN 12 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4571 |
| Standard |
DIN / ANSI |
| Suction characteristics |
Non- priming |
| Suitable for drinking water |
Yes |
| Type of casing |
Annular casing |
| Type of impeller |
Multi- vane impeller;Closed;Closed / Radial;Radial |
| Type of connection |
Flange |
| Casing material (EN standard) |
1. 4571 |
| eClass assignment |
36410000; 36410100;36410101 |
| Maximum head |
106, 00 m |
| Minimum head |
2, 00 m |
| Installation position |
Horizontal |
| Shaft seal type |
Mechanical seal |
| Main applications |
Building services; Water;Energy;Industry and process engineering |
| Casing material |
Chrome nickel molybdenum steel |
| Maximum discharge-side pressure |
12 bar |
| Maximum drive rating |
45 kW |
| Type of installation |
Stationary |
| Maximum flow rate |
260 m³/h |
| Minimum flow rate |
2 m³/h |
| Maximum speed of rotation |
3. 500 1/min |
