Hmax 108,00 m
Qmax 250 m³/h
Design

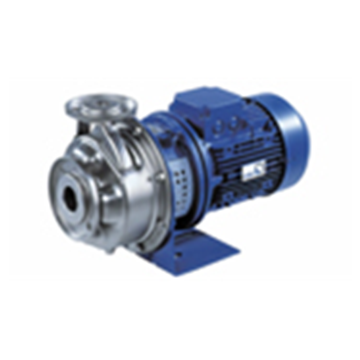

Close-coupled, horizontal, single-stage annular casing pump, with ratings and main dimensions to EN 733, with replaceable casing wear rings. Design to ATEX.
Applications
Spray irrigation, irrigation, drainage and water supply systems, heating and air-conditioning systems, fire-fighting systems, swimming pools, handling of condensate, hot water, cooling water, fire-fighting water, oil, drinking water, cleaning agents, service water.
Overview of technical data
| Casing partition |
Radially split |
| Drive |
IEC standardized motor |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| Connection to power supply |
220/ 400/690 V, 3~ |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
1. 4571 |
| Type of installation |
Close- coupled |
| Type of coupling |
Direct |
| Max. permissible fluid temperature |
110 °C |
| Guaranteed to be silicon-free |
Yes |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN 12 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4571 |
| Standard |
DIN |
| Suction characteristics |
Non- priming |
| Suitable for drinking water |
Yes |
| Type of casing |
Annular casing |
| Type of impeller |
Radial; Closed / Radial;Closed;Multi-vane impeller |
| Type of connection |
Flange |
| Casing material (EN standard) |
1. 4571 |
| eClass assignment |
36410000; 36410100;36410101 |
| Maximum head |
108, 00 m |
| Minimum head |
2, 00 m |
| Installation position |
Horizontal |
| Shaft seal type |
Mechanical seal |
| Main applications |
Water; Industry and process engineering;Energy;Building services |
| Casing material |
Chrome nickel molybdenum steel |
| Maximum discharge-side pressure |
12 bar |
| Maximum drive rating |
45 kW |
| Type of installation |
Stationary |
| Maximum flow rate |
250 m³/h |
| Minimum flow rate |
2 m³/h |
| Maximum speed of rotation |
3. 500 1/min |
