Hmax 64,00 m
Qmax 130 m³/h
Design

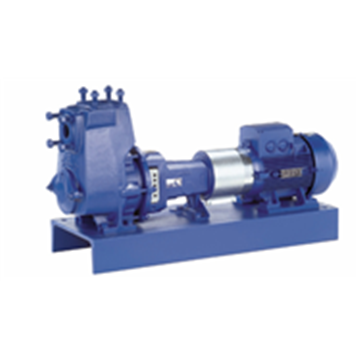

Horizontal, self-priming volute casing pump, single-stage, with open multivane impeller, in close-coupled design, with common pump and motor shaft (B) or rigidly connected (BN). Design to ATEX.
Applications
Handling of pure, contaminated or aggressive liquids not containing abrasive substances and / or solids.
Overview of technical data
| Type of bearing |
Rolling element bearings |
| Casing partition |
Radially split |
| Diffuser material (EN standard) |
1. 4571;C45+N;1.4462 |
| Drive |
IEC standardized motor, electric motor |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| Connection to power supply |
250- 480 V/ 440-830V; 3~ |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
CC483K- GS;1.4408;JL 1040 |
| Type of installation |
Long- coupled |
| Type of coupling |
Direct |
| Type of lubrication |
Grease lubrication |
| Max. permissible fluid temperature |
90 °C |
| Guaranteed to be silicon-free |
Yes |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN 16; PN 40 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4462;C45+N;1.4571 |
| Suction characteristics |
Self- priming |
| Suitable for drinking water |
Yes |
| Type of casing |
Volute casing |
| Type of impeller |
Multi- vane impeller;Open |
| Type of connection |
Screw- ended, flange |
| Casing material (EN standard) |
1. 4408;JL 1040 |
| eClass assignment |
36410100; 36410000;36410101 |
| Free passage |
10 mm |
| Maximum head |
104, 00 m |
| Minimum head |
5, 00 m |
| Installation position |
Horizontal |
| Shaft seal type |
Mechanical seal |
| Main applications |
Building services; Water;Industry and process engineering;Waste water / sewage |
| Casing material |
Cast stainless steel; Cast iron |
| Maximum discharge-side pressure |
10 bar |
| Maximum drive rating |
37 kW |
| Type of installation |
Stationary |
| Maximum flow rate |
170 m³/h |
| Minimum flow rate |
4 m³/h |
| Maximum speed of rotation |
3. 500 1/min |
| Pump size |
2. 09; 3.12; 4.11; 4.14; 5 |
