Hmax 162,00 m
Qmax 1.160 m³/h
Design

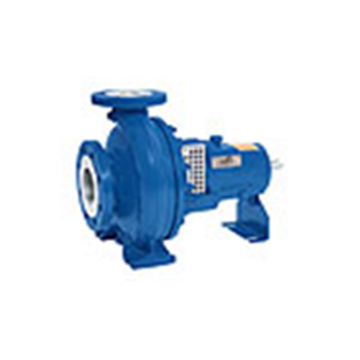

Horizontal, radially split volute casing pump in back pull-out design to EN 22 858 / ISO 2858 / ISO 5199, single-stage, single-entry, with radial impeller. Also available as variant with "wet" shaft. ATEX-compliant version available.
Applications
Handling of aggressive liquids in the chemical and petrochemical
industries as well as in refinery.
Overview of technical data
| Type of bearing |
Ball bearings |
| Casing partition |
Radially split |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| No. of impeller entries |
Single entry |
| Heatable |
Yes |
| Impeller material (EN standard) |
1. 4593 / 1.4517 / A995GRCD4MC;GP240GH+N/ A216GRWCB;JL1040/ A48CL35 |
| Type of installation |
Long- coupled |
| Type of coupling |
Direct |
| Level indication |
Grease lubrication |
| Type of lubrication |
Grease / Oil lubrication |
| Max. permissible fluid temperature |
400 °C |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN25 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Integrated control system |
Yes |
| Shaft material (EN standard) |
ALLOY STEEL 1. 7709+QT+SR;DUPLEX STAINLESS STEEL 1.4462;STEEL C45+N |
| Suction characteristics |
Non- priming |
| Type of casing |
Volute casing |
| Type of impeller |
Closed / Radial |
| Type of connection |
Flange |
| Casing material (EN standard) |
DUPLEX STAINLESS STEEL 1. 4593/;GREY CAST IRON JL1040 / A48CL3;STAINLESS STEEL 1.4408 / A743;STEEL GP240GH+N/ A216 GR WCB |
| Maximum head |
162, 00 m |
| Minimum head |
2, 00 m |
| Installation position |
Horizontal |
| Shaft seal type |
Gland packing; Mechanical seal |
| Main applications |
Industry and process engineering; Oil / Gas |
| Maximum discharge-side pressure |
25 bar |
| Maximum drive rating |
90 kW |
| Maximum flow rate |
1. 160 m³/h |
| Minimum flow rate |
2 m³/h |
| Maximum speed of rotation |
4 1/min |
