Hmax 115,00 m
Qmax 10.000 m³/h
Design

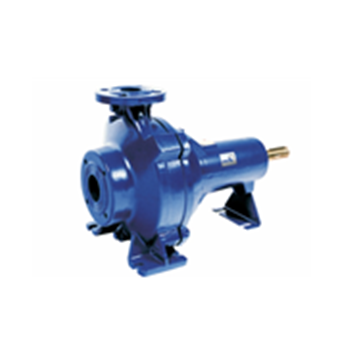

Horizontal or vertical volute casing pump with free-flow (F), single vane (E), multi-vane (K) and diagonal single vane (D) impellers, discharge flange to DIN and ANSI standards. Design to ATEX.
Applications
Handling of sewage and all types of waste water in waste water management and industry.
Overview of technical data
| Type of bearing |
Rolling element bearings |
| Casing partition |
Radially split |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage, high voltage |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
1. 4517;JL 1040;JN 3029 |
| Type of installation |
Long- coupled |
| Type of coupling |
Jack shaft / Belt drive;Direct;Float switch;Bubbler system |
| Type of lubrication |
Grease lubrication |
| Max. permissible fluid temperature |
70 °C |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN16 |
| Pull-out design |
Yes |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4021;1.4462 |
| Suction characteristics |
Non- priming |
| Type of casing |
Volute casing |
| Type of impeller |
Single- channel impeller;Free flow impeller;Closed;Radial;Multi-vane impeller;Open |
| Type of connection |
Flange |
| Casing material (EN standard) |
JL 1040 |
| eClass assignment |
36410101; 36410103 |
| Free passage |
280 mm |
| Maximum head |
115, 00 m |
| Minimum head |
2, 00 m |
| Installation position |
Horizontal or vertical |
| Shaft seal type |
Mechanical seal; Gland packing |
| Main applications |
Industry and process engineering; Waste water / sewage |
| Casing material |
Cast iron |
| Maximum discharge-side pressure |
10 bar |
| Maximum drive rating |
710 kW |
| Type of installation |
Stationary |
| Maximum flow rate |
10. 000 m³/h |
| Minimum flow rate |
10 m³/h |
| Maximum speed of rotation |
2. 900 1/min |
