- Hmax 100,00 m
- Qmax 2.400 m³/h
Design

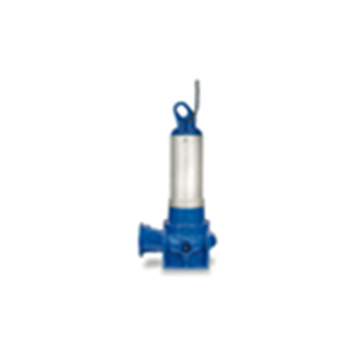

Vertical, single-stage submersible motor pump made of wear-resistant industrial materials in close-coupled design, various impeller types, for wet or dry installation, stationary and transportable version. Design to ATEX.
Applications
Handling of all types of abrasive or aggressive waste water in water and waste water engineering as well as industry, especially untreated sewage containing long fibres and solid substances, fluids containing gas / air, as well as raw, activated and digested sludge; sea water desalination.
Overview of technical data
| Type of bearing |
Rolling element bearings |
| Casing partition |
Radially split |
| Drive |
Electric motor |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| Connection to power supply |
< 690 V, 3~ |
| Explosion protection |
ATEX II 2 G T3; ATEX II 2 G T4 |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
JN 3029; 1.4517 |
| Type of installation |
Close- coupled |
| Type of coupling |
None |
| Type of lubrication |
Oil lubrication |
| Max. permissible fluid temperature |
60 °C |
| Nozzle position |
End suction |
| Maximum rated pressure (discharge) |
PN 16 |
| Pump set location |
Wet well |
| Shaft material (EN standard) |
1. 4462;C45+N |
| Suction characteristics |
Non- priming |
| Type of casing |
Volute casing |
| Type of impeller |
Open; Multi-vane impeller;Radial;Closed;Free flow impeller |
| Type of connection |
Flange |
| Casing material (EN standard) |
1. 4517;JN 3029 |
| eClass assignment |
36410103; 36410101 |
| Free passage |
120 mm |
| Maximum head |
100, 00 m |
| Installation position |
Vertical |
| Shaft seal type |
Mechanical seal |
| Main applications |
Water; Oil / Gas;Energy;Industry and process engineering;Mining / Dredges;Waste water / sewage |
| Casing material |
White cast iron; Cast duplex steel |
| Maximum discharge-side pressure |
10 bar |
| Maximum drive rating |
200 kW |
| Type of installation |
Stationary; Transportable |
| Maximum flow rate |
2. 400 m³/h |
| Maximum speed of rotation |
3. 500 1/min |
