Hmax 12,00 m
Qmax 16,50 m³/h

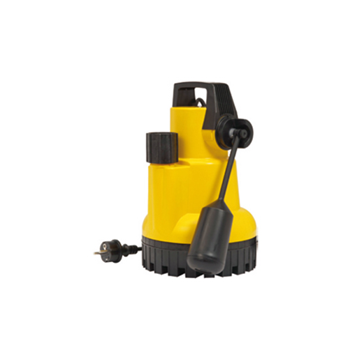

Fully floodable, vertical, close-coupled single-stage submersible motor pumps, IP 68, with or without level control, for a maximum immersion depth of 10 m. Applications: automatic drainage of sumps, pits, yards and basements subject to a flooding risk, lowering of surface water levels, drainage of underground passages, water extraction from rivers and reservoirs.
Overview of technical data
| Type of bearing |
Ball bearings |
| Drive |
Electric motor |
| Drive frequency |
50 Hz |
| Type of drive |
Electric motor, turbine |
| Drive voltage |
Low voltage |
| Connection to power supply |
230 V, 1~ |
| Explosion protection |
OHNE |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
PP; PA, PP;PA |
| Type of coupling |
Direct |
| Type of lubrication |
Grease lubrication |
| Max. permissible fluid temperature |
35 °C |
| Pump set location |
Wet well |
| Shaft material (EN standard) |
1. 4028;1.4571 |
| Suction characteristics |
Non- priming |
| Suitable for drinking water |
Yes |
| Type of impeller |
Free flow impeller; Open |
| Type of connection |
Thread |
| UNSPSC classification |
4015150300 |
| Casing material (EN standard) |
PP |
| eClass assignment |
36410101; 36410105;36410000;36410100 |
| Free passage |
35 mm |
| Maximum head |
12, 00 m |
| Minimum head |
1, 30 m |
| Installation position |
Vertical |
| Shaft seal type |
Shaft seal ring; Mechanical seal |
| Main applications |
Building services; Water;Waste water / sewage |
| Casing material |
Plastics |
| Maximum drive rating |
7, 50 kW |
| Type of installation |
Transportable; Stationary |
| Maximum flow rate |
16, 50 m³/h |
| Maximum speed of rotation |
2. 800 1/min |
