Hmax 401,00 m
Design:

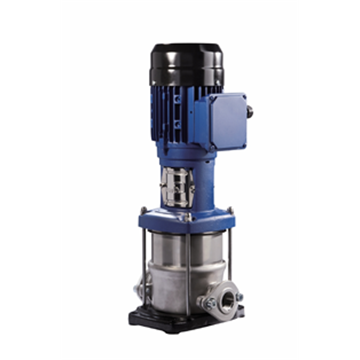

Multistage, vertical high-pressure centrifugal pump in ring-section design intended for installation on tanks, with the pump's hydraulic section being immersed in the fluid pumped, while the motor is dry-installed.
Applications:
For handling coolants, condensate and lubricants for machine tools. Potential fields of application include industrial recirculation systems, cooling water circuits, washing plants and pressure boosting in general process applications.
Overview of technical data
| Barrel casing |
Yes |
| Type of bearing |
Plain bearings |
| Casing partition |
Radially split |
| Diffuser material (EN standard) |
1. 4301;1.4404 |
| Drive frequency |
50 Hz / 60 Hz |
| Type of drive |
Electric motor |
| Drive voltage |
Low voltage |
| No. of impeller entries |
Single entry |
| Impeller material (EN standard) |
1. 4301;1.4404 |
| Type of installation |
In- line |
| Type of coupling |
Direct |
| Type of lubrication |
Oil / Product lubrication |
| Max. permissible fluid temperature |
140 °C |
| Nozzle position |
In- line |
| Maximum rated pressure (discharge) |
40 BAR |
| Pump set location |
Dry installed |
| Shaft material (EN standard) |
1. 4305;1.4401 |
| Suction characteristics |
Non- priming |
| Suitable for drinking water |
Yes |
| Type of impeller |
Radial |
| Type of connection |
Flange |
| Type of stage casing |
Stage casing with diffuser |
| UNSPSC classification |
4015150300 |
| Casing material (EN standard) |
1. 4301;1.4401;JL 1040 |
| eClass assignment |
36410101 |
| Maximum head |
401, 00 m |
| Installation position |
Vertical |
| Shaft seal type |
Mechanical seal |
| Main applications |
Industry and process engineering; Water;Building services |
| Casing material |
Chrome nickel steel |
| Maximum discharge-side pressure |
40 bar |
| Maximum drive rating |
45 kW |
| Type of installation |
Stationary |
| Maximum flow rate |
112, 80 m³/h |
| Maximum speed of rotation |
2. 900 1/min |
